Processed Materials:
99.97% cathode copper and highly-pure copper liquid
Application:
Used to produce large length of bright oxygen-free copper rods

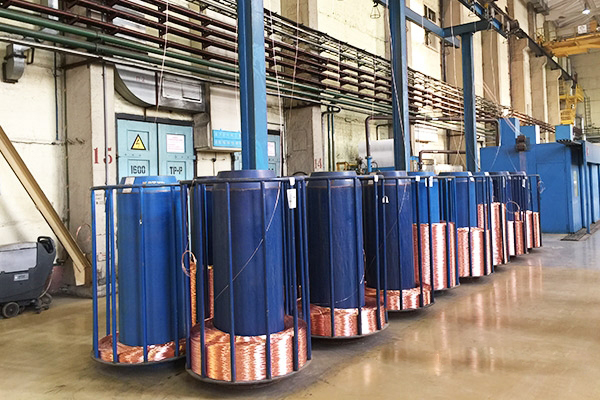

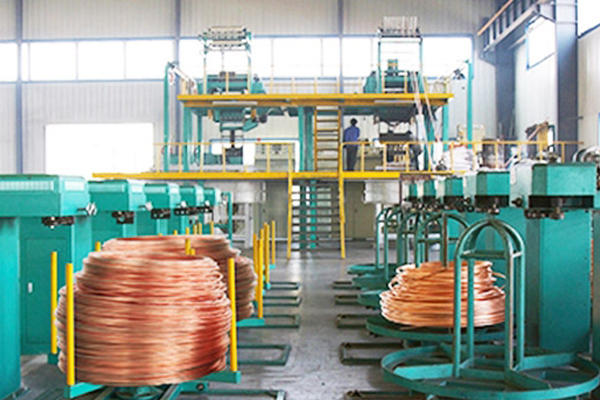

The upward casting system can smelt electrolytic copper or high-purity copper liquid by the frequency induction furnace into liquid. Through the charcoal on the surface and air isolation (to avoid oxidation of copper liquid), the holding furnace temperature for copper can be controlled at 1150 ℃ + -10 ℃. Continuous casting machine can make copper into the crystallization through the rapid crystallization and produce continuous copper rods, and finally make the copper rods into coils by double-headed take-up machine and other auxiliary equipment.

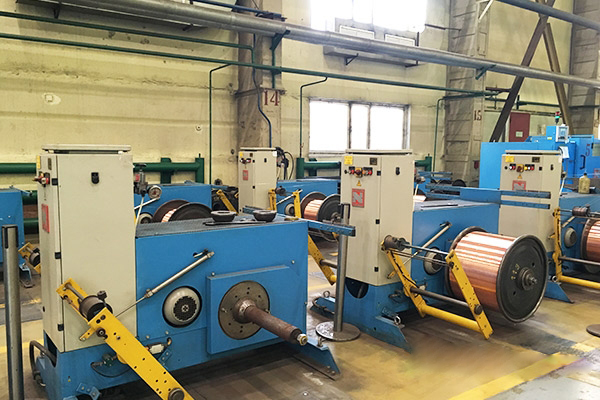

The system consists of frequency induction furnace, continuous casting machine, guide wheel frame, tension bracket, double-headed take-up machine, water cooling system, electrical system, feeding system and temperature measurement system.

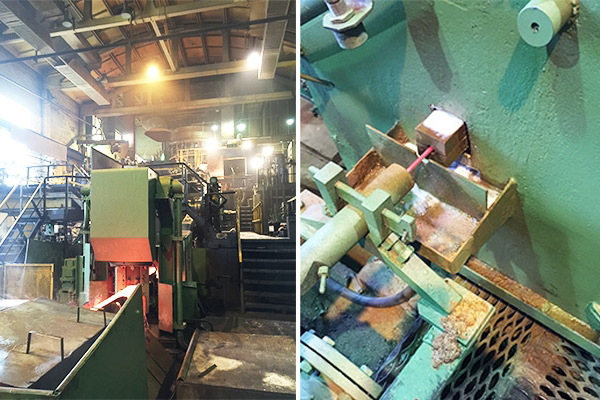

Continuous Casting Machine
The continuous casting machine is the main equipment to realize the continuous casting. It consists of the three major parts including traction mechanism, liquid level tracking system and crystallizers and it has the structure of four gantry pillars.
|
Item |
Item |
Parameters |
|
1 |
Equipment model |
SYJ1017-I3 |
|
2 |
Annual capacity |
5000 tons |
|
3 |
Furnace structure |
combined furnace(2 melting furnace and 1 heat holding furnace |
|
4 |
Number of casting rod |
10 |
|
6 |
Diameter of casting rod |
Ф17mm |
|
7 |
Speed of upward casting |
0～1200mm/min |
|
8 |
Annual working hours |
7920h |
|
9 |
Tracking accuracy of liquid level |
±2mm |
|
10 |
Coiling specification |
Ф700mm×Ф1500mm×800mm |
|
11 |
Copper melting rate |
650kg/h |
|
12 |
Power consumption of copper melting |
<350kwh/ton |
|
13 |
Way of coiling |
automatic coiling |
|
14 |
Driven by coil turn plate |
pushed by copper rod and make arrangement in order by hand. |
|
15 |
Way of loading |
load a entire copper cathode by electric host |
|
16 |
Drive by upward casting |
driven by AC servo motor and use gapless synchronous belt transmission as the transmission chain |
|
17 |
Clamping Way of upward casting copper pod |
hand-clamping |
